Steel Wire Rope PVC-coated 6x7-WSC Stainless
Product information
A stainless rope equipped with a Steel (WSC) and has a PVC-coating. It can be used for various applications such as locking rope, signaling devices, etc but not for lifting.
The PVC-coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

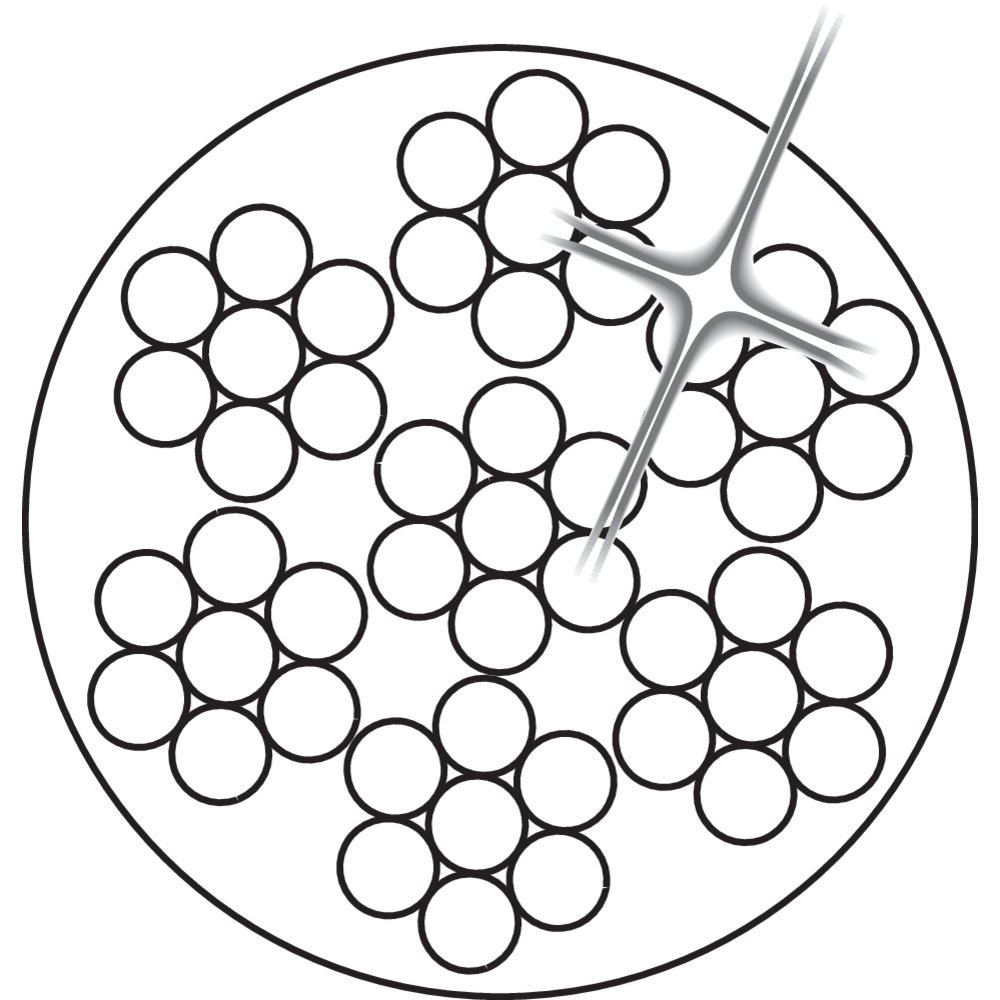

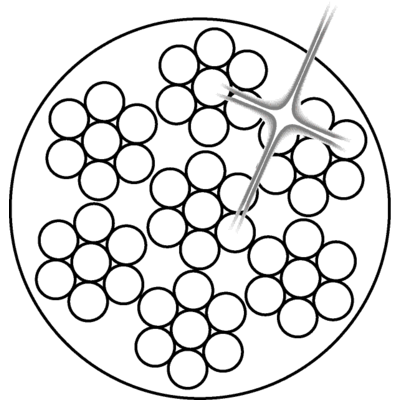

- Rope construction: 6x7-WSC
- Material: AISI 316 / EN 1.4401
- Marking: According to standard
- Temperature range: -30°C up to +70°C
- Finish: PVC-coated, see table for colour
-
Standard:
EN 12385-4
except material and coating - Note: Peel off coating at end when making any end fittings such as clamping ferrules etc
- Fill factor: 0,55
-
General use
Product FAQ
Does this steel wire rope have any special design or performance features?
This steel wire rope has an external plastic coating that provides additional protection against corrosion, wear, and handling damage.
PlasticOutside
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a stainless steel surface finish and is manufactured with a tensile strength of 1570 N/mm². Stainless steel provides excellent resistance to corrosion in aggressive environments such as marine, chemical, or hygienic applications.
What is the construction of this steel wire rope?
This steel wire rope is constructed with 6 strands. It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
